Aluminium Louvre Roof NZ
Aluminium Louvre Roof NZ
- Est. Delivery: 2-4 weeks
- Free site visits in Auckland and Waikato
Couldn't load pickup availability
Frequently Bought Together
Make the patio the place you actually live in.
Light / Medium / Heavy — Three Tiers, Three Budgets
Our louvre roofs come in three structural tiers — Light, Medium and Heavy Duty.
Each tier uses different post size, blade profile and drainage capacity, designed for different budgets and performance needs.
From cost-effective coverage for everyday patios to heavy-duty systems built for high wind and high rainfall areas — we match the system to how you actually live and use the space.

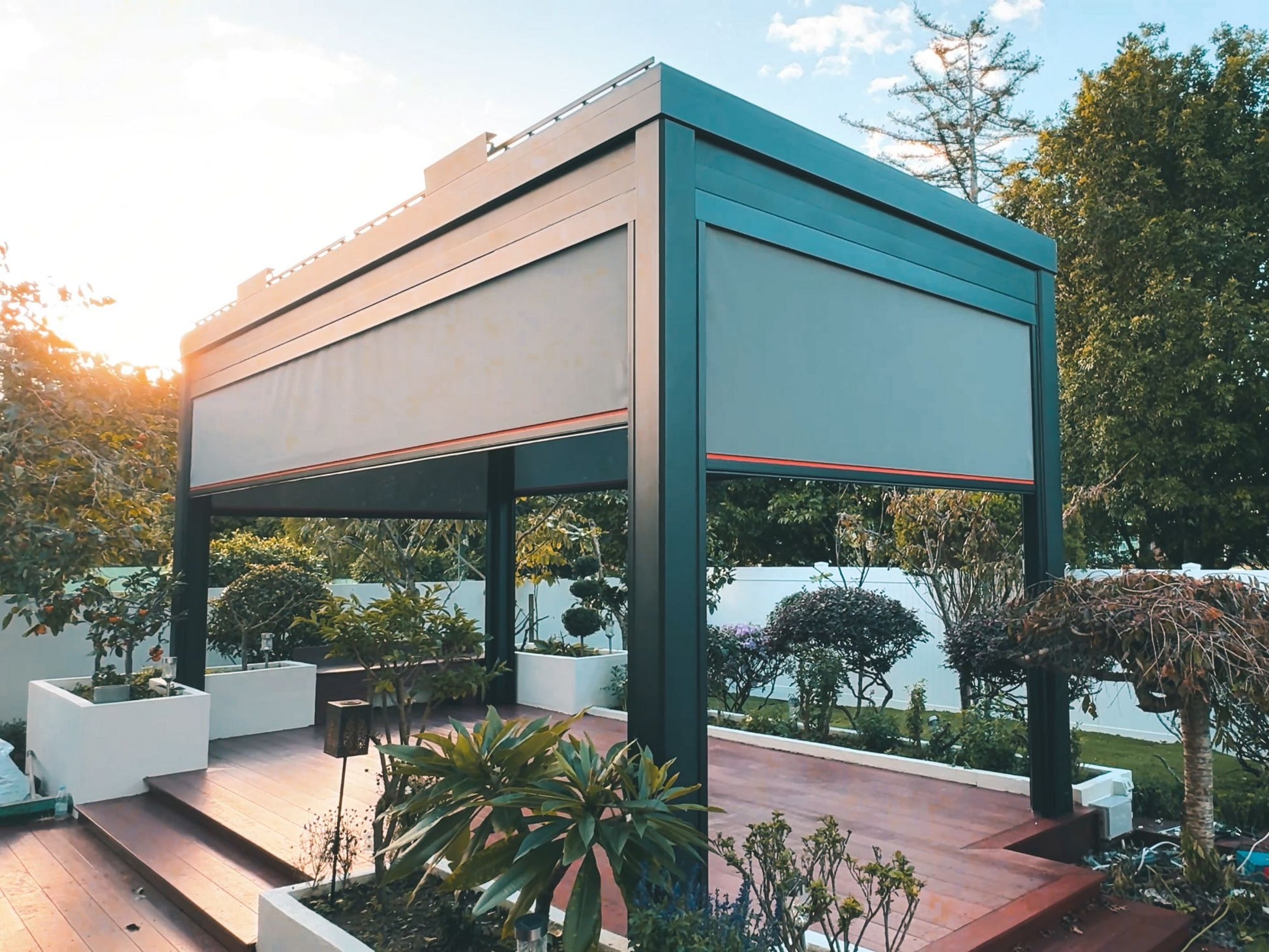

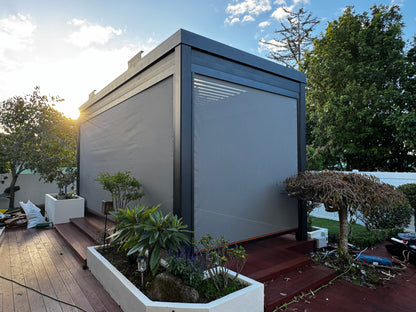

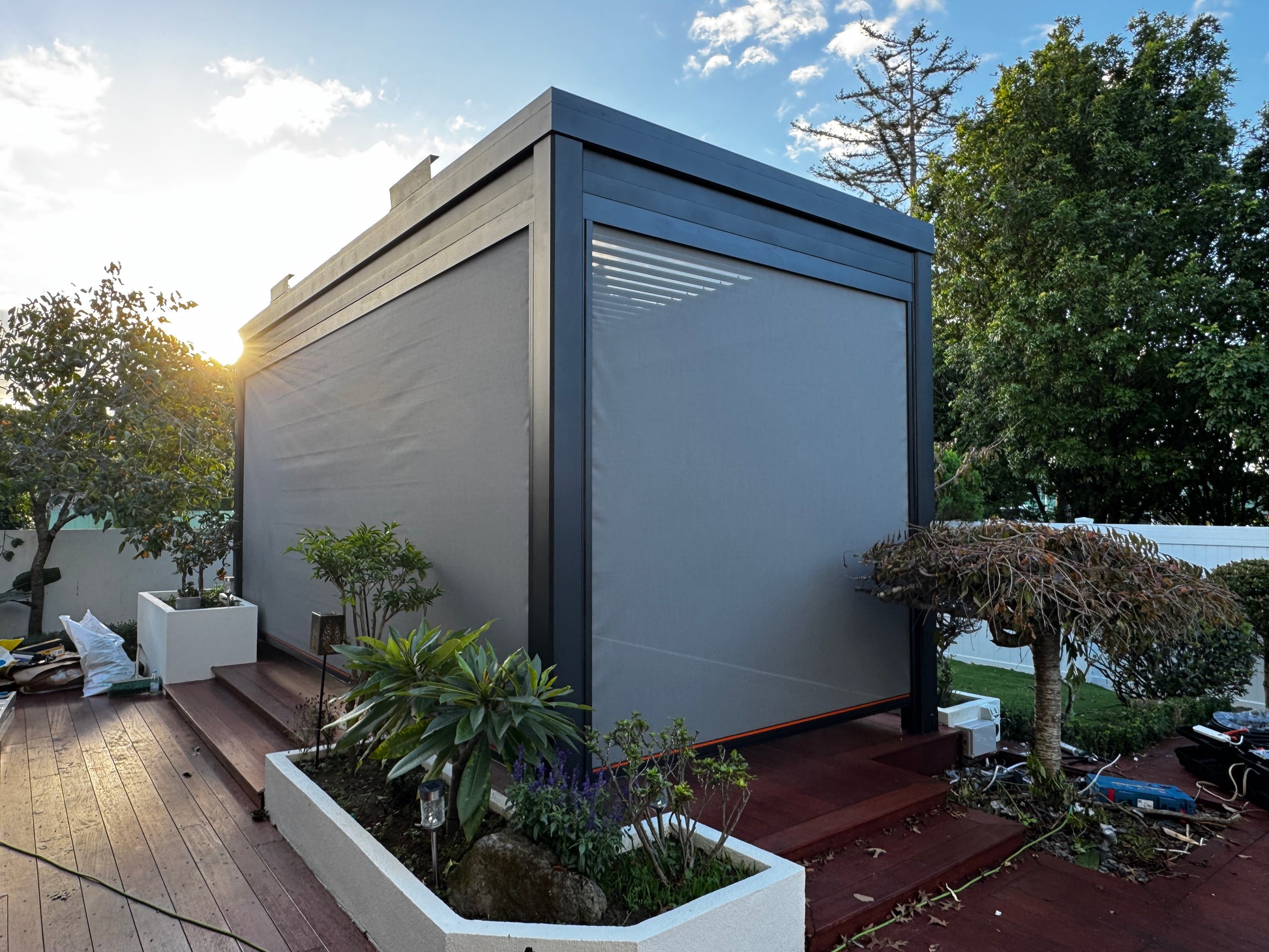

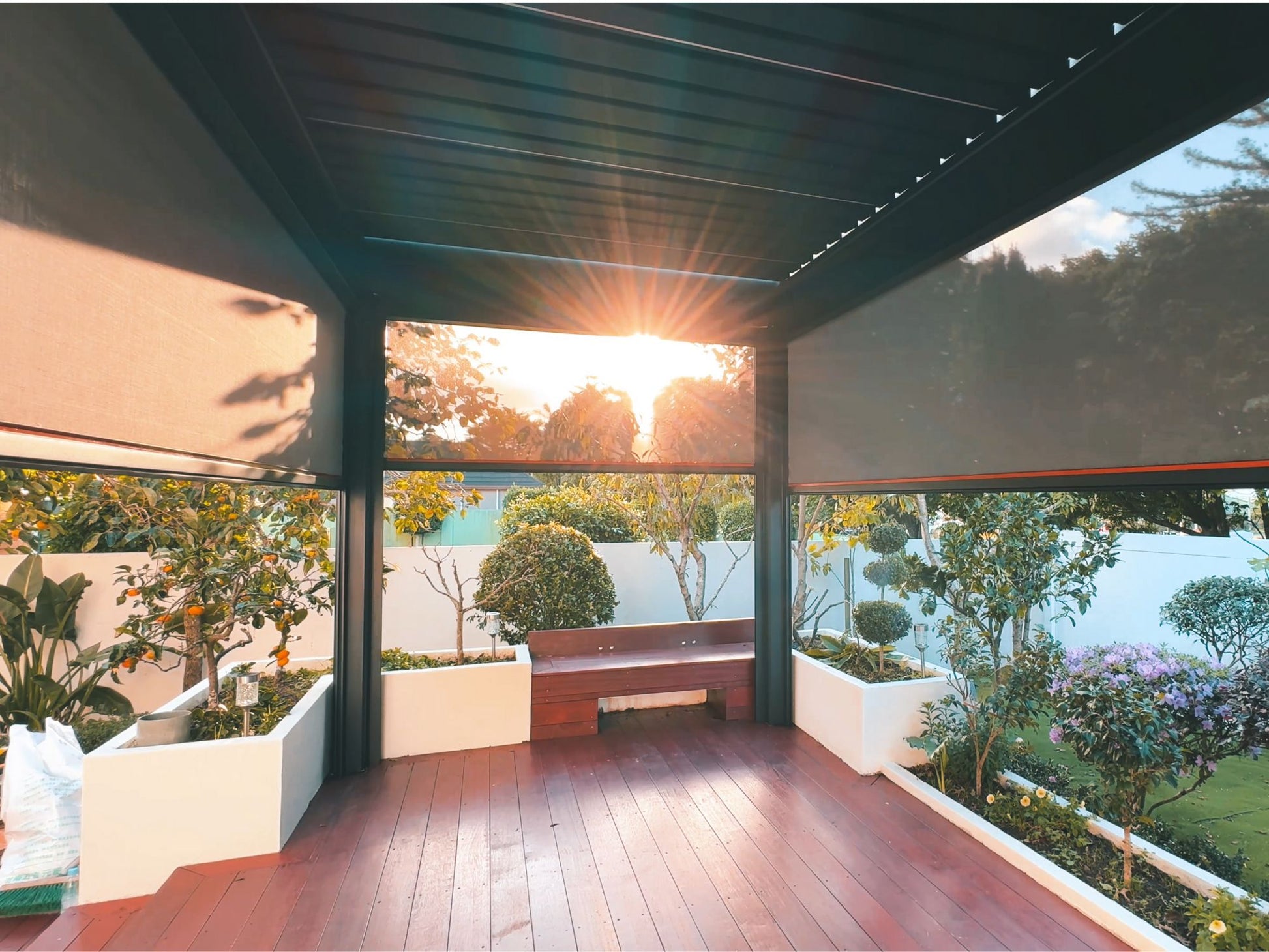

Complete It with Glass, Blinds or Shutters
A louvre roof becomes a real room only when the sides are considered.
You can pair it with glass sliding doors for a clean panoramic look, wind-break roller blinds for budget-friendly comfort, or aluminium shutter panels for privacy and ventilation control.
Combine them to create a space that works in summer heat, winter wind, and every day in between.

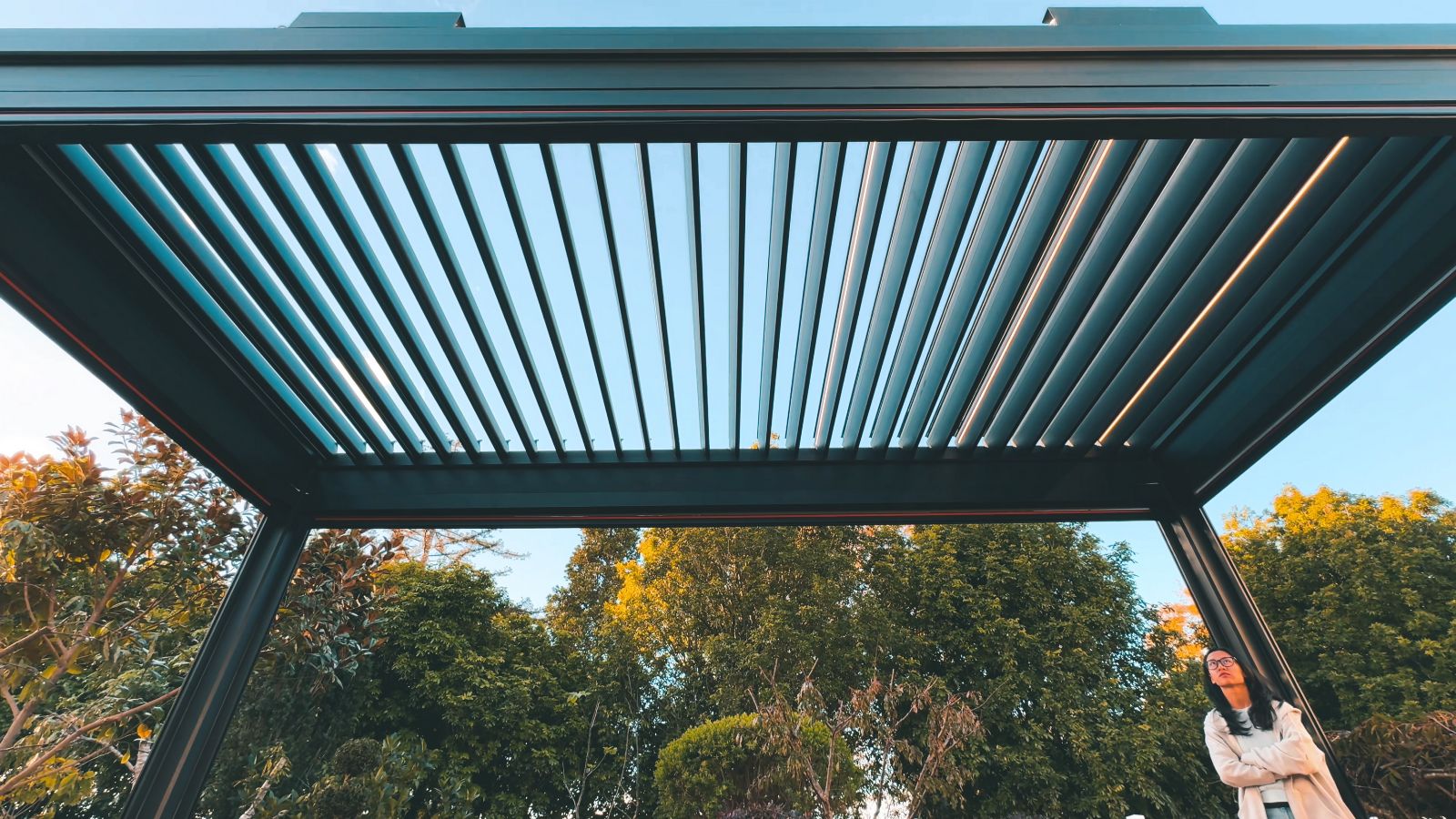

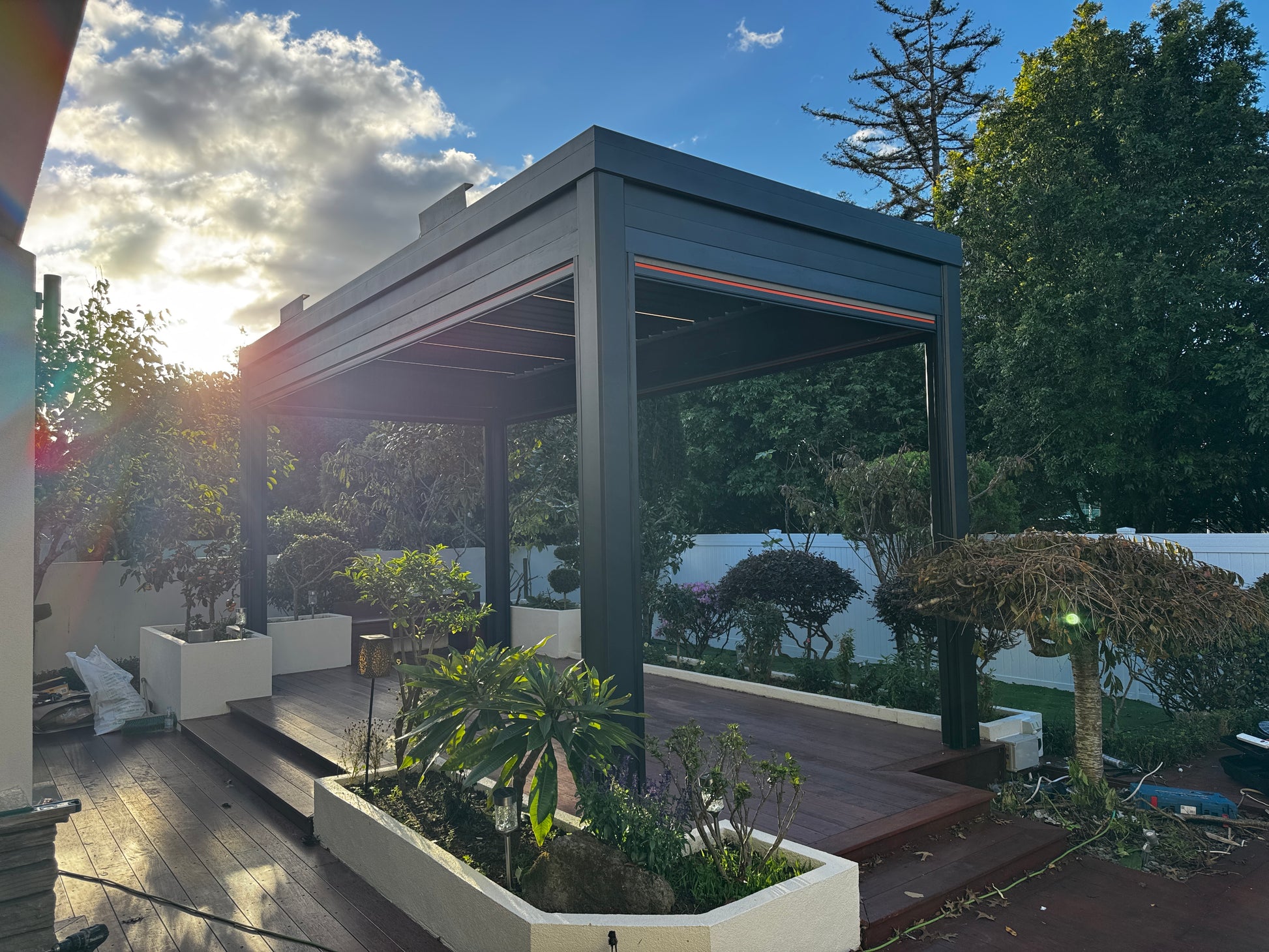

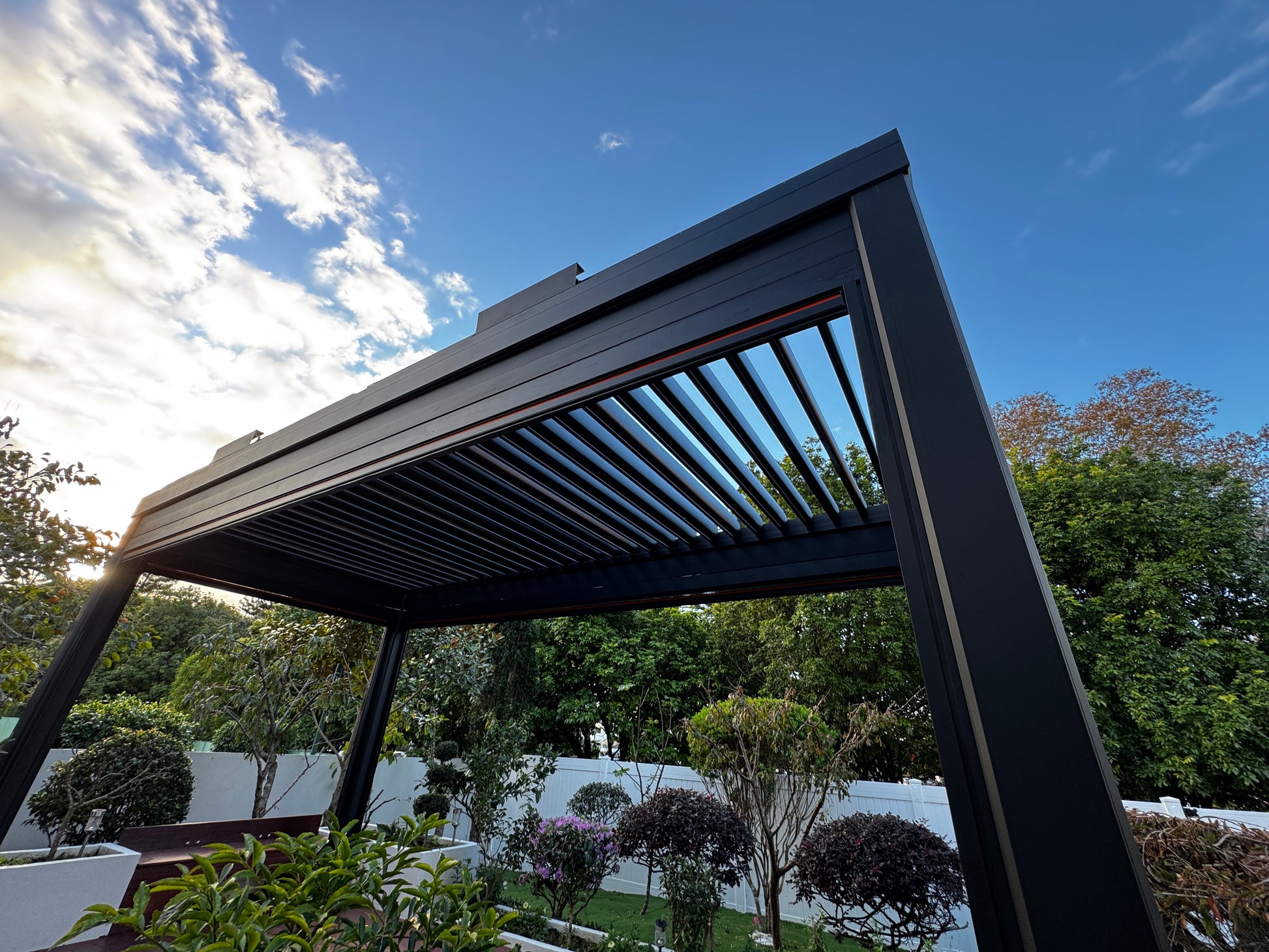

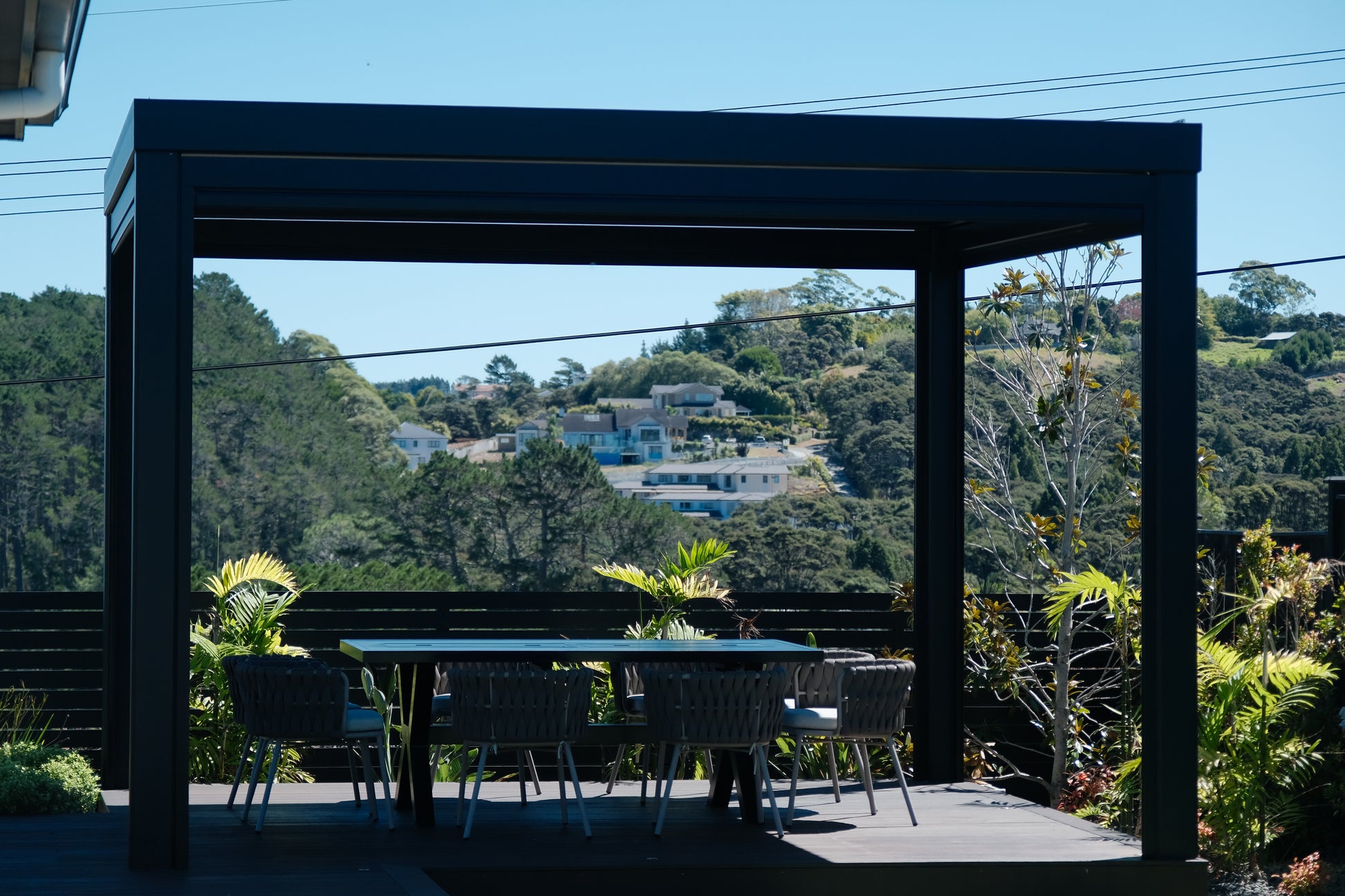

GC Living Freestanding Motorised Louvre Roof
Smart Aluminium Pergola for New Zealand Outdoor Living
Create a premium outdoor living area anywhere in your backyard with the GC Living Freestanding Motorised Louvre Roof. This independent aluminium pergola system is designed to stand on its own, offering complete flexibility in placement without relying on an existing building or wall.
Engineered for New Zealand’s climate, this motorised louvre roof provides year-round protection, adjustable sunlight, and excellent ventilation — all controlled at the touch of a button.
Key Features of the Freestanding Motorised Louvre Roof
-
Freestanding aluminium pergola structure – no attachment to the house required
-
Motorised louvre blades with remote control operation
-
Adjustable louvres (0°–100°) for precise light, shade, and airflow control
-
All-weather protection from rain, sun, wind, and light snow
-
Heavy-duty powder-coated aluminium frame for long-term outdoor use
-
Double-layer louvre system for improved strength, drainage, and durability
-
Integrated LED strip lighting with warm & cool tones and dimming memory
-
Clean, modern design suitable for residential outdoor spaces
Designed for New Zealand Conditions
The GC Living freestanding motorised louvre roof is built to perform in New Zealand’s variable weather. Its reinforced aluminium structure and engineered louvre system are designed to withstand strong winds, heavy rainfall, and seasonal outdoor exposure.
Technical Specifications
-
Material: 6063-T6 aluminium alloy
-
Colour Options:
-
Black
-
White
-
Charcoal
-
Charcoal frame with white louvres
-
-
Louvre Rotation Range: 0°–100°
-
Wind Resistance: Up to 220 km/h (subject to installation method and site exposure)
-
Snow Load Capacity: 110–310 kg/m²
-
Warranty:
-
10-year structural warranty
-
3-year motor warranty
-
Aluminium Louvre Roof – FAQs & Comparisons
What is an aluminium louvre roof system?
An aluminium louvre roof system uses adjustable aluminium blades to control sunlight, airflow, and rain protection, making it suitable for year-round outdoor use.
Do louvre roofs require building consent in New Zealand?
Some louvre roofs under 30 square metres and non-enclosed may not require building consent, but this depends on wind zone, fixing method, and council requirements. A site assessment is recommended.
Are louvre roofs suitable for New Zealand weather conditions?
Yes. Louvre roofs are designed to handle New Zealand’s sun, rain, and wind when correctly designed for site conditions and wind zones.
Are louvre roofs waterproof when closed?
When fully closed, louvre roofs are designed to channel rainwater through integrated drainage systems. Performance depends on correct installation and slope.
Can louvre roofs be motorised or manually operated?
Yes. Louvre roofs can be either motorised or manually operated, depending on the system design and customer preference.
What is the difference between the 220 and 183 louvre roof systems?
The 220 system is a heavy-duty design with larger blades and stronger structural capacity, while the 183 system is a standard-duty option suited for smaller spans and more sheltered areas.
Which louvre system is better for higher wind zones?
The 220 louvre roof system is generally more suitable for higher wind zones due to its stronger structure and wider span capability.
Which system allows wider spans with fewer posts?
The 220 system is designed to support wider spans with fewer posts compared to the 183 system.
Can side enclosures or outdoor blinds be added to louvre roofs?
Yes. Side enclosures or outdoor blinds can be added, though additional structural considerations may apply, especially in exposed locations.
How long do aluminium louvre roofs typically last?
With proper installation and normal maintenance, aluminium louvre roofs commonly last 15–25 years or longer.
What maintenance does a louvre roof require?
Maintenance is minimal and usually involves cleaning the louvre blades and checking drainage channels periodically.
What is the difference between a louvre roof, pergola, and canopy?
A louvre roof has adjustable blades, a pergola is usually an open or fixed shade structure, and a canopy has a fixed roof surface such as polycarbonate or glass.
Which option offers the best control of sunlight and ventilation?
Louvre roofs offer the best control due to adjustable blades. Pergolas offer limited control, while canopies provide fixed coverage.
Which option provides the best rain protection?
Canopies and closed louvre roofs provide strong rain protection. Pergolas generally do not provide full rain protection unless additional roofing is added.
Which option is best for year-round outdoor use?
Louvre roofs are commonly chosen for year-round use due to their flexibility in handling sun, rain, and ventilation, while canopies are a simpler fixed option and pergolas are often seasonal.
